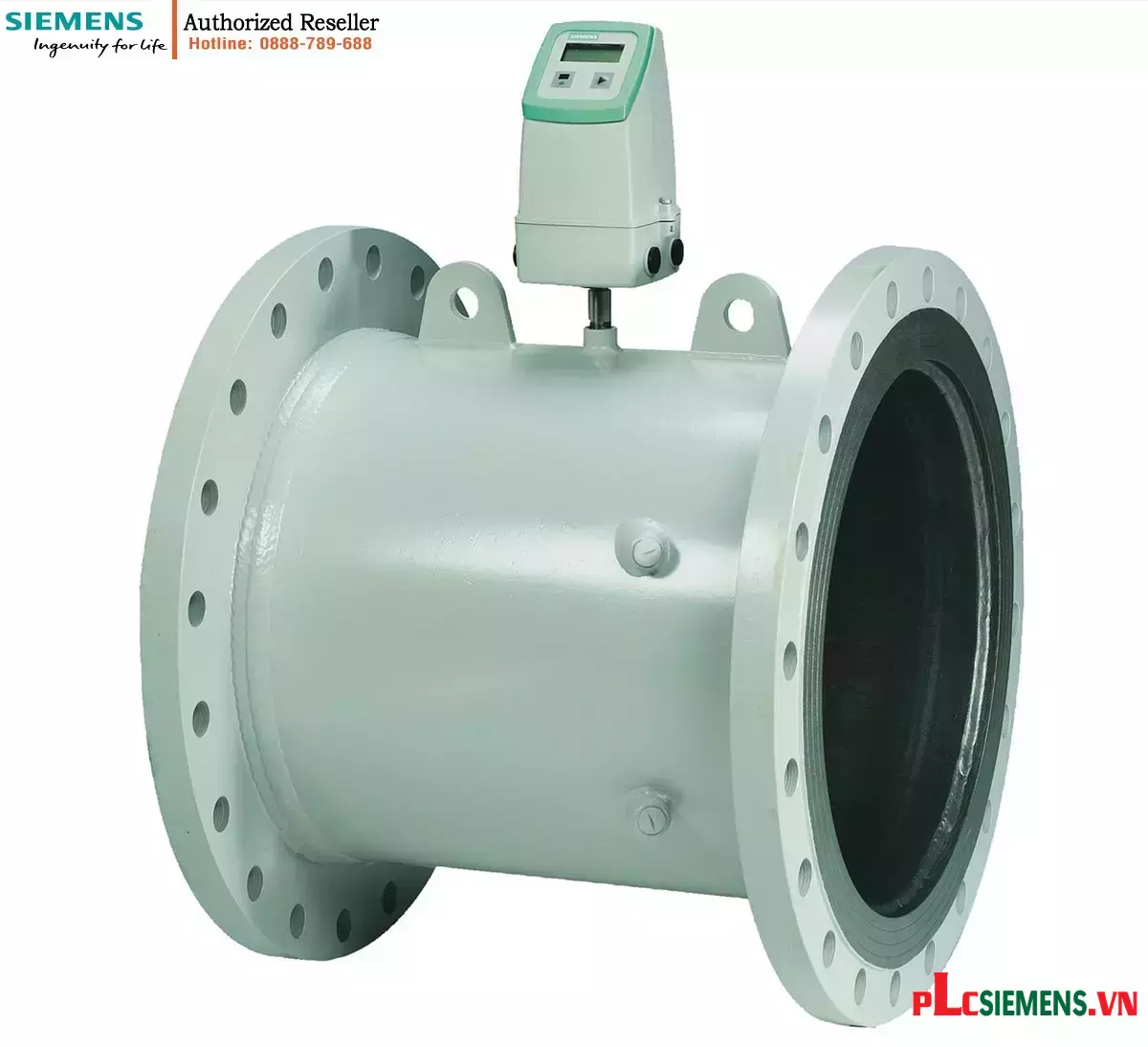

Đồng hồ đo lưu lượng siêu âm Siemens SITRANS FUE380 7ME3410-3CC31-5EC2
SITRANS FUE380 Mains or battery-operated ultrasonic In-Line flowmeter, diameter DN 50 to DN 1200 (2" to 48"), custody transfer approved. Suitable for volume flow and thermal energy measurement of liquids, for use in custody transfer metering in district heating plants, local networks, boiler stations, chiller plants. Siemens "DN400 (16"") Carbon Steel," EN 1434, qp=950m3/h, qs=2660m3/h, qi=19m3/h EN1092-1 PN16 Remote version, Sensor link cabel (SSL) 10 m, with gland, DN50 to DN80: max. 150°C (302°F), DN100 to DN800 max. 200°C (392°F) Without EU type approval suitable for billing measurements outside Europe where national approvals exist Calibration according to selection pipe size / flow range Impulswert: 50 L/p (not suitable for FUE950 with nominal size 3L up to 5V) Power supply 115 - 230V AC, Backup: 3.6V DC Lithium battery, single pack is included Marking for standard device for billing measurements in China - CPA 11F188-21 Language on nameplate English Pulse width: 5 ms
0₫
Mã sản phẩm:7ME3410-3CC31-5EC2
Danh mục:Đo lưu lượng
